Precision CNC Machining Services for Custom Parts
JADE-CNC provides customized CNC machining services, specializing in the production of precision metal and plastic parts. From rapid prototypes to production runs, we deliver tight-tolerance components with 3/4/5-axis milling, turning, and EDM, and 30+ surface finishes — all under one ISO 9001 certified roof.
- Tight Tolerances: ±0.005mm
- Best delivery time within 3 Days
- 50+ Materials Options
- No minimum order quantity
Precision CNC Machining Services For Metal and Plastic Parts
Custom CNC machining manufactures parts directly from CAD files, 2D drawings, or functional specifications. Unlike catalog components, every part is made to your exact geometry, material, tolerance, and finish requirements. JADE-CNC reviews each project before quotation so the machining route, material choice, inspection scope, and delivery plan match the actual part — not a generic estimate.
This service covers prototypes, low-volume production, replacement parts, precision housings, brackets, shafts, plates, fixtures, and custom components that cannot be sourced off-the-shelf. Whether you need one functional prototype or 10,000 production parts, the same engineering review and quality process apply.
CNC Machining Capabilities We Specialize In
JADE-CNC supports CNC milling, turning, 5-axis machining, EDM, Swiss machining, drilling & tapping, and surface grinding through one coordinated manufacturing workflow — no need to juggle multiple vendors.
CNC Milling
3-axis and 4-axis vertical milling for plates, housings, brackets, pockets, slots, flat surfaces, threaded holes, and complex milled features. Ideal for prismatic parts with multiple flat faces.
CNC Turning
Horizontal and vertical turning for shafts, pins, bushings, sleeves, spacers, rings, and other round or rotational parts. Live tooling available for cross-drilling and milling on turned parts.

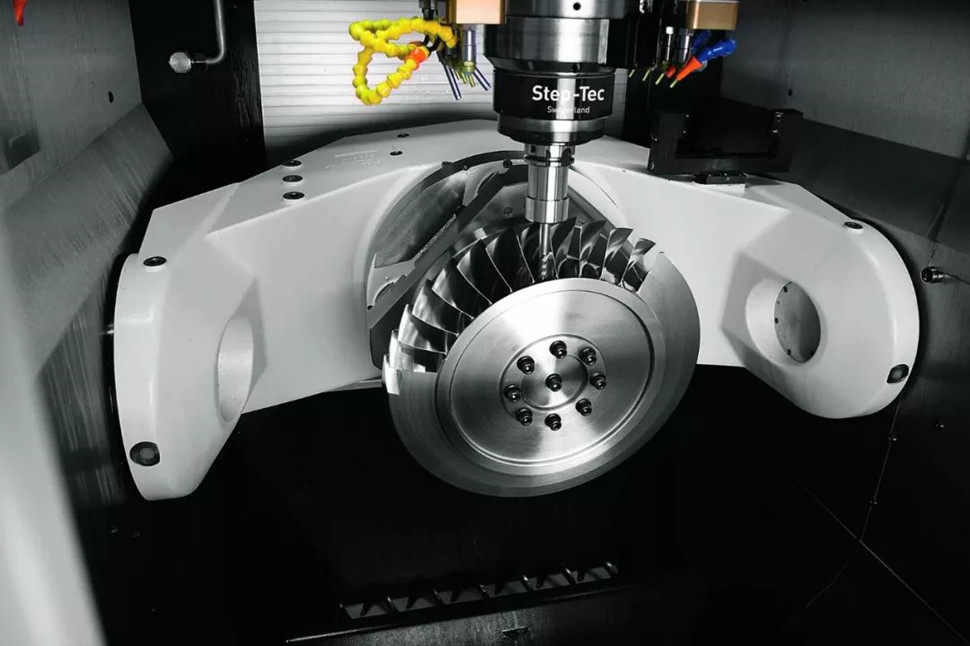

5-Axis CNC Machining
Simultaneous 5-axis machining for complex geometry, multi-angle features, undercuts, and parts requiring better tool access. Reduces setups and improves accuracy on contoured surfaces.

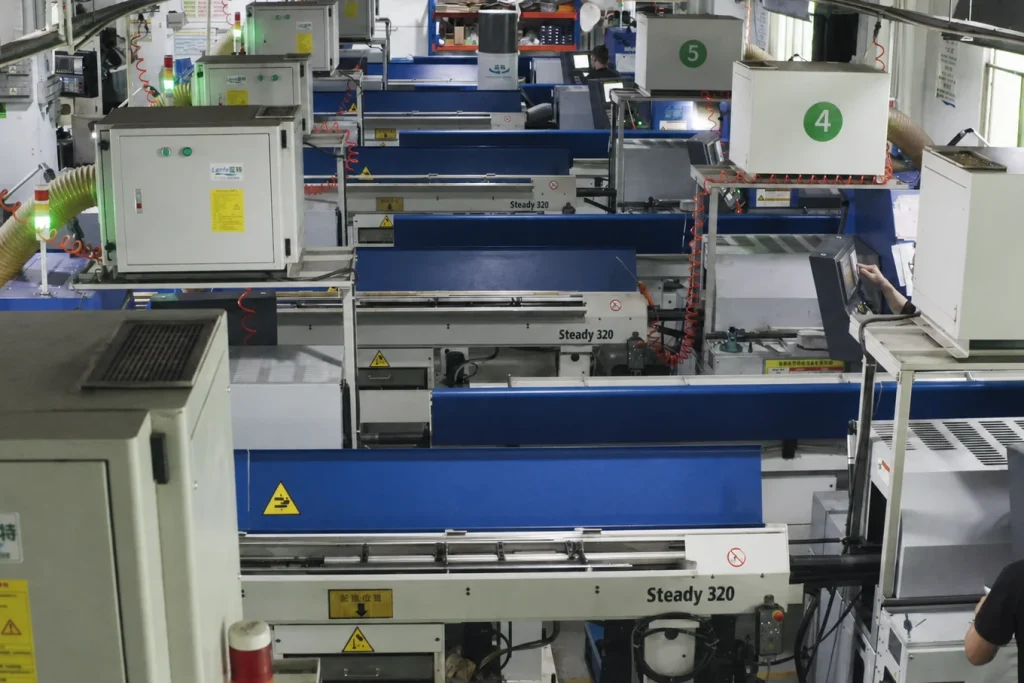

CNC Swiss Machining
Sliding-headstock Swiss-type lathes for long, slender, high-precision rotational parts with tight concentricity. Ideal for small-diameter components in large quantities.
EDM (Wire & Sinker)
Wire EDM for intricate profiles, sharp internal corners, and hard materials; sinker EDM for complex cavities and die work. No cutting force means burr-free, stress-free results.

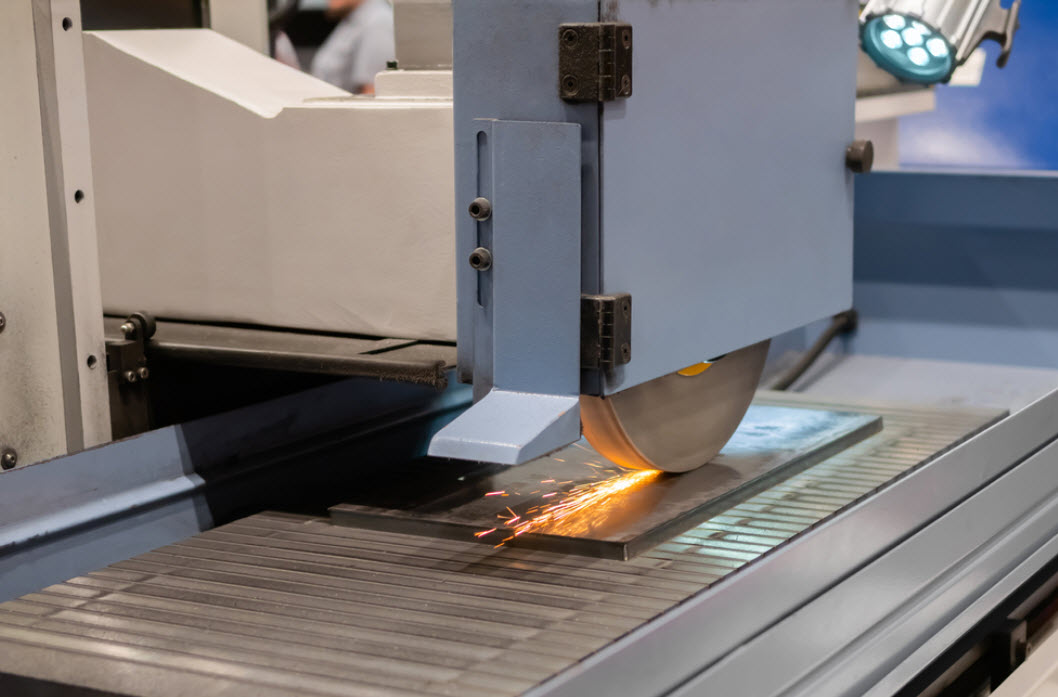

Surface Grinding
High-precision surface grinding for flatness down to 0.002mm and surface finish Ra 0.2μm. Used for sealing faces, mold surfaces, and precision datum surfaces.
CNC Machining Tolerances & Precision Capabilities
JADE-CNC routinely holds tight tolerances for critical applications. Actual achievable tolerance depends on material, part geometry, feature size, and inspection method — we review every drawing before quoting to confirm feasibility.
Feature Type | Standard Tolerance | Critical Tolerance | Notes |
General linear dimensions | ±0.05mm | ±0.01mm | Depends on size & material |
Critical bore / hole | ±0.01mm | ±0.005mm | Reaming + inspection |
Shaft / OD turning | ±0.01mm | ±0.005mm | Ground finish available |
Position / location | ±0.02mm | ±0.005mm | CMM verified |
Flatness (sealing face) | 0.01mm/100mm | 0.005mm/100mm | Surface grinding |
Concentricity | 0.01mm | 0.005mm | Swiss/turning |
Surface finish (as machined) | Ra 1.6μm | Ra 0.8μm | Standard |
Surface finish (polished) | Ra 0.4μm | Ra 0.05μm | Manual/mechanical polish |
Thread pitch | 6H/6g standard | 4H/4g precision | Gauge verified |
CNC Machining Materials We Offer
We stock and source 50+ engineering materials — from common aluminum and steel to exotic alloys and engineering plastics. All materials come with mill test certificates (MTC) and can be verified via PMI upon request.
|
Material |
Key Properties |
Typical Applications |
|---|---|---|
|
Good machinability, moderate strength, anodizes well |
Housings, brackets, panels, prototypes |
|
|
High strength, fatigue resistant |
Structural parts, aerospace components |
|
|
Aluminum 5052 |
Corrosion resistant, good formability |
Enclosures, marine parts, panels |
|
Food/medical parts, fixtures, valves |
||
|
Superior corrosion resistance |
Marine, chemical, medical implants |
|
|
High strength, heat treatable |
Shafts, gears, aerospace fittings |
|
|
Brass C36000 |
Excellent machinability, corrosion resistant |
Connectors, valves, electrical parts |
|
High conductivity, corrosion resistant |
Electrical contacts, heat exchangers |
|
|
Titanium Grade 5 |
High strength-to-weight, corrosion resistant |
Aerospace, medical, racing parts |
|
Tool Steel (D2/SKD11) |
High hardness, wear resistant |
Dies, punches, cutting tools |
|
CTE matches glass, hermetic sealing |
Glass-to-metal seals, optoelectronic packages |

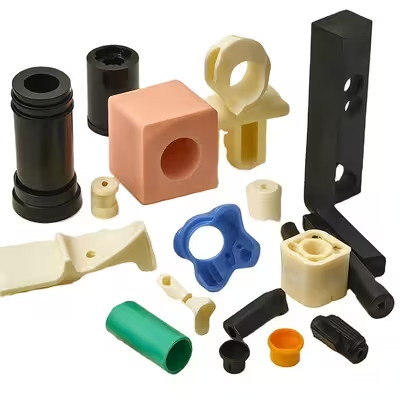

Material | Key Properties | Typical Applications |
ABS | Good impact strength, easy to machine | Housings, prototypes, consumer parts |
PC (Polycarbonate) | High clarity, impact resistant | Transparent parts, guards, lenses |
Acrylic (PMMA) | Excellent clarity, polished finish | Optical parts, display panels |
POM (Delrin) | Low friction, dimensional stable | Gears, bushings, sliding parts |
PA66 (Nylon) | Wear resistant, good mechanical | Gears, rollers, structural parts |
PEEK | High temp, chemical resistant | Aerospace, medical, semiconductor |
PTFE (Teflon) | Low friction, chemical inert | Seals, insulators, food-grade parts |
Material | Key Properties | Typical Applications |
Invar 36 | Near-zero thermal expansion | Precision instruments, aerospace tooling |
Inconel 718 | High temp strength, corrosion resistant | Turbine parts, aerospace, energy |
Hastelloy | Superior corrosion/acid resistance | Chemical processing, oil & gas |
Different Surface Finish Types We Offer
JADE-CNC offer 30+ surface finishes in-house and through certified partners — from Anodizing to high-polish and Nickel Plating. Finish requirements are planned into the machining process to ensure correct tolerances and adhesion.
Anodizing
Electrochemical coating that increases corrosion resistance, wear resistance, and decorative color options. Available in Type I (chromic), Type II (sulfuric), and Type III (hard coat).

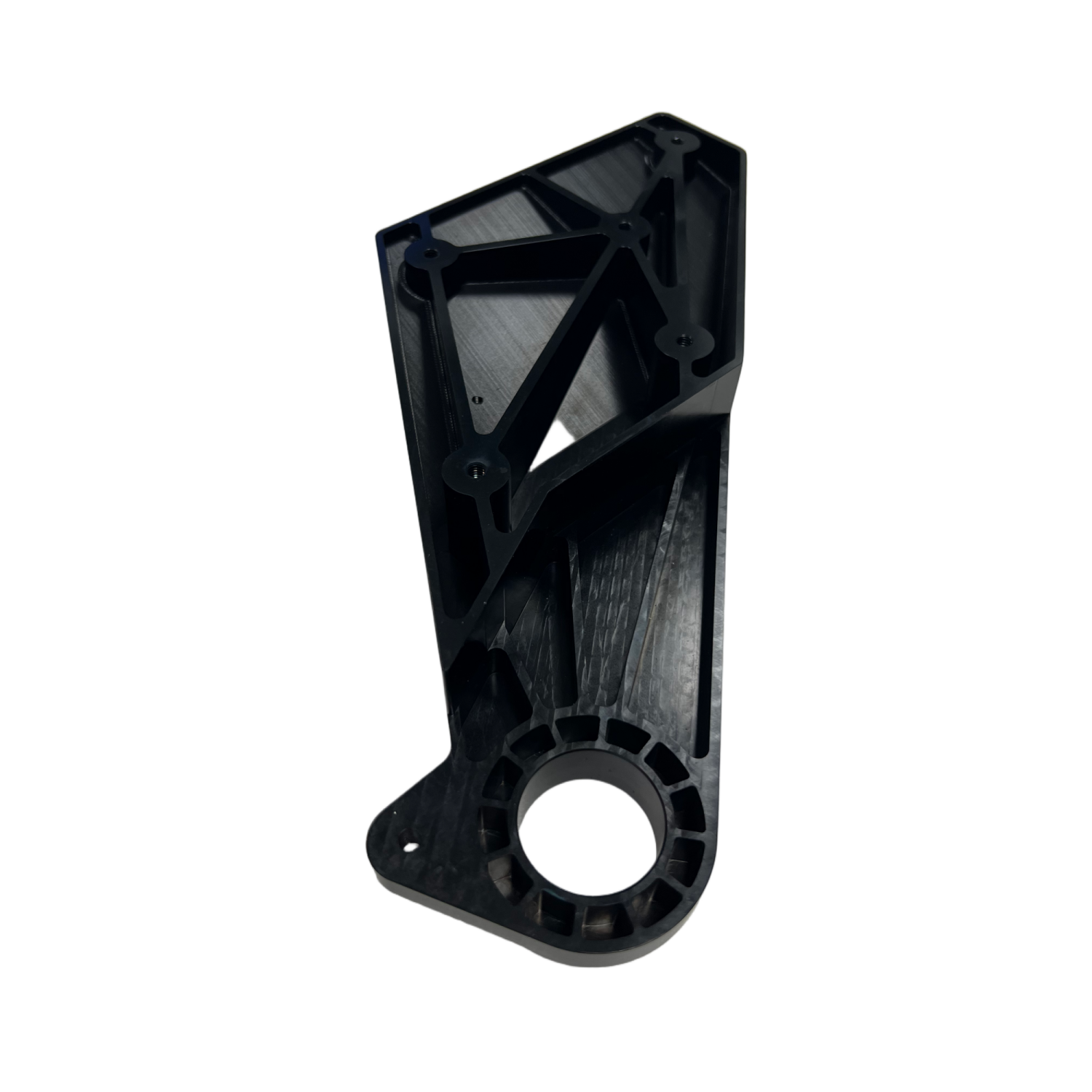

Black Oxide
Chemical conversion coating that forms a black oxide layer on steel surfaces. Provides mild corrosion resistance and a black, non-reflective appearance.
Bead Blasting
Fine glass beads sprayed under pressure to produce a uniform matte, non-reflective surface. Hides tool marks and minor imperfections.
Chrome Plating
Chemical conversion coating for aluminum and zinc that provides corrosion protection and improves paint adhesion. Available in clear and yellow (iridescent) finishes.
Electroplating
Deposits a thin metal layer (nickel, chrome, zinc, gold, silver, tin) onto the part surface for corrosion protection, conductivity, or decorative appearance.
Heat Treating
Thermal process to alter material properties — increasing hardness, strength, or toughness. Includes annealing, quenching, tempering, and precipitation hardening.
Laser Engraving
Permanent marking using a focused laser beam. Ideal for part numbers, logos, serial numbers, and scale markings. No consumables, high precision.
Passivation
Chemical process that removes free iron from stainless steel surfaces, restoring the natural chromium oxide layer for maximum corrosion resistance.
Polishing
Mechanical process using progressively finer abrasives to achieve a smooth, reflective surface. Ra down to 0.05μm. Available for cosmetic and sealing-face applications.
Brushing
Mechanical surface treatment using abrasive belts or brushes to create directional linear grain patterns. Produces a consistent brushed finish that hides scratches and tool marks.
CNC Engraving
Permanent marking machined directly into the part surface using CNC tools. Ideal for part numbers, logos, serial numbers, and scale markings.
Nickel Plating
Electroplated nickel layer that provides corrosion resistance, hardness, and a smooth, semi-bright finish. Available as electroless nickel (uniform thickness, no current required) or electrolytic nickel.

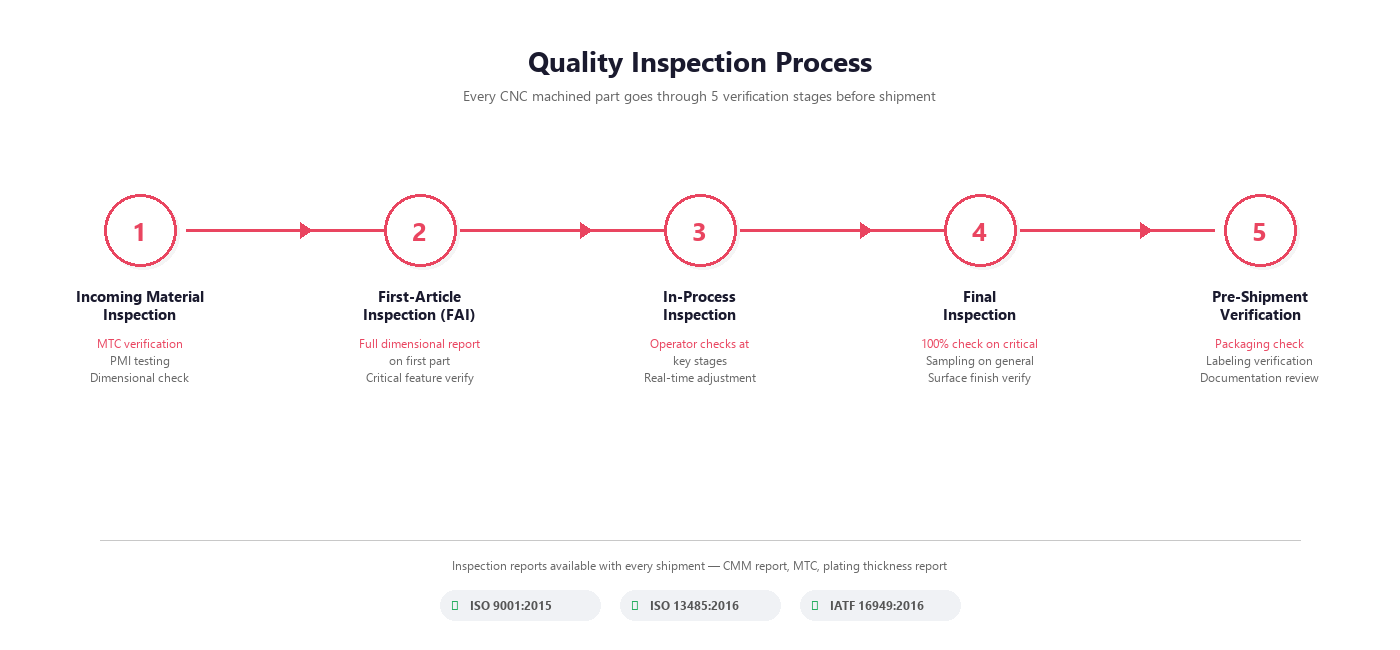

Quality Certifications & Inspection
Quality is built into every step — from incoming material inspection to final shipment verification. JADE-CNC operates under internationally recognized quality management systems.
Trusted by Our Partners
Industries We Serve
JADE-CNC supplies precision CNC machined parts to four high-demand industries where tolerances, material certification, and surface finish directly affect product performance. Each industry has dedicated material grades, inspection requirements, and documentation standards — our engineering team knows the differences.
Robotics
High-stiffness, low-weight structural and joint components in 7075-T6, stainless steel, and titanium. Critical bores held to ±0.01mm with CMM verification.
Communication
RF housings, waveguide components, and connector bodies in copper, brass, aluminum, and Kovar. Plating thickness verified with XRF gauges.
Electronics
Enclosures, chassis, and thermal components in 6061-T6, copper, brass, and engineering plastics. Anodizing and chromating available.
Medical
ISO 13485 certified. Biocompatible parts in 316L, titanium Grade 5, PEEK, and medical aluminum. Full material certificates with every shipment.
Why Customers Choose CNC Machining Services From JADE-CNC
Clear Cost Drivers
Quotes break down material, machining time, finishing, inspection, and packaging separately. You see exactly what drives cost and can make informed trade-offs.
One-Stop Manufacturing Solution
Milling, turning, 5-axis, EDM, grinding, surface finishing, and inspection — all under one roof. No need to coordinate multiple vendors or risk quality gaps between processes.
Global Delivery & Support
We ship worldwide via DHL, FedEx, UPS, and sea freight. English-speaking engineering team responds within 24 hours. From prototype to production, we scale with you.
Experienced Engineering Review
Every project gets a real engineering review before quoting — not an automated instant quote. We flag manufacturability issues, suggest cost-saving alternatives, and confirm tolerance feasibility before you commit.
Inspection Before Shipment
Every order goes through in-process and final inspection. Critical dimensions are 100% checked. Inspection reports are available with every shipment.
How to Start a Custom CNC Machining Project
We manufacture custom metal and plastic CNC machined parts to match your drawings, functional requirements, inspection needs, and delivery schedule.
Send CAD files
Upload your STEP, IGES, X_T, or 2D PDF drawings through our quote form. Include material, quantity, tolerance, finish, and delivery requirements.
Engineering Review
Our engineers review your design for manufacturability, material suitability, tolerance feasibility, and cost drivers. We may suggest improvements or alternatives.
Quotation and Confirmation
Receive a detailed quote within 24 hours with material, process, finishing, inspection, and delivery breakdown. Confirm the order and pay deposit.
Production and Delivery
Parts are machined, finished, inspected, packed, and shipped according to confirmed requirements. Track your order at every stage. Inspection reports included.
Excellent CNC machining Parts We Made
Get Your Custom CNC Machining
Quotation Today!
From concept review to finished parts, JADE-CNC supports custom CNC machining projects with engineering review, precision machining, finishing, inspection, and delivery coordination. Send your drawings, material, quantity, tolerance, and surface finish requirements so our team can prepare a practical manufacturing quote.
FAQ
There is no minimum order quantity at JADE-CNC. We accept orders for single prototypes, small batches, and full production runs. The same engineering review and quality process apply regardless of quantity.
We typically provide detailed quotes within 24 hours of receiving your CAD files and requirements. For complex parts or assemblies requiring additional engineering review, it may take up to 48 hours. Rush quotes are available upon request.
We accept STEP (.step/.stp), IGES (.igs/.iges), X_T (Parasolid), SolidWorks (.sldprt), and 2D PDF drawings. Please include material specifications, tolerance requirements, surface finish, and quantity with your submission.
Standard tolerances are ±0.05mm for general dimensions and ±0.01mm for critical features. With grinding and careful process control, we can hold ±0.005mm on critical bores, shafts, and sealing faces. Tolerance feasibility is reviewed before quotation based on material, geometry, and feature size.
Every order goes through incoming material inspection, first-article inspection, in-process checks, and final inspection. Critical dimensions are 100% verified; general dimensions are sampled. We use CMM, vision systems, micrometers, height gauges, surface roughness testers, and thread gauges. Inspection reports are available with every shipment.
Yes. Our engineering team reviews every design for manufacturability before quoting. We identify potential issues such as deep pockets, thin walls, sharp internal corners, inaccessible features, and tolerance conflicts, and suggest cost-saving modifications. This DFM review is free of charge.
Prototypes (1-5 pcs): 5-10 working days with standard finishes, 3 days available for rush. Low volume (10-100 pcs): 10-20 working days. Production (100+ pcs): 15-30 working days depending on complexity and finishing. Special processes like plating or heat treating may add 3-7 days.
Yes. We can provide assembly, tapping, reaming, deburring, cleaning, and custom packaging. For components requiring welding, adhesive bonding, or electrical assembly, we partner with certified vendors and manage the full process. We can deliver complete sub-assemblies ready for your production line.
